普朗特液压扳手之圆钢液压剪

时间:2020-08-17     作者:圆钢液压剪【转载】   来自:圆钢液压剪   阅读

普朗特液压扳手因为新冠的影响,2020年2-3月根据相关要求停工一段时间,现在已经全面复工,有需要咨询购买、售后维护的客户请及时联系我们。

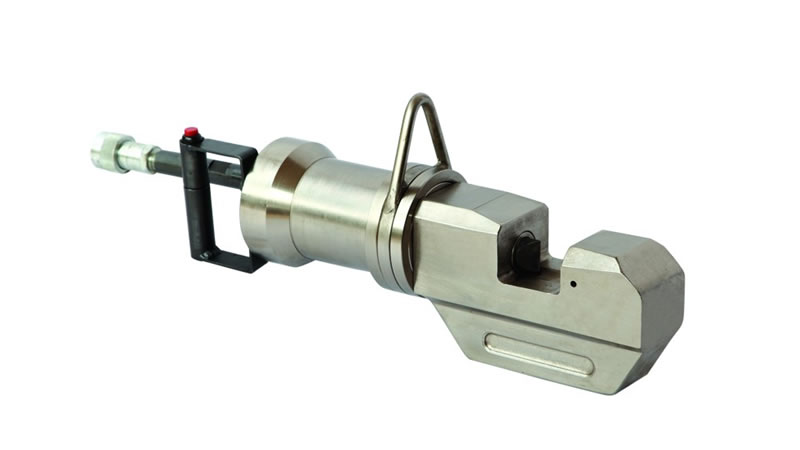

圆钢液压剪图片

圆钢液压剪

圆钢液压剪特点

Product characteristics:

圆钢液压剪是一种高寿命圆钢剪断工具,适用于各种类型的高速线材厂

Round steel hydraulic shear is a kind of high-life round steel shear tool, which is suitable for various types of high-speed wire mills.

该设备采用纯正德国部件,配用专用合金钢剪刃及专用液压泵

The equipment is made of pure German components with special alloy steel shears and special hydraulic pumps.

可长时间保持最佳工作状态,能在2.5秒内切断直径为32mm且硬度HRC38的合金钢,

It can keep the best working condition for a long time and cut off the alloy steel with diameter of 32 mm and hardness of HRC38 in 2.5 seconds.

切断圆钢后,活动刀头可自动复位,整个过程安全,可靠,操作方便。

After cutting round steel, the movable cutter head can be automatically reset. The whole process is safe, reliable and easy to operate.

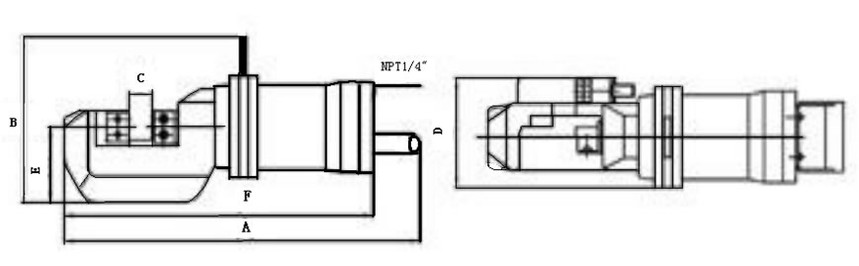

圆钢液压剪外形


圆钢液压剪型号



型号

Model



剪切形式

Cutting   type



出力T

output



剪切最大直径

Din

外形尺寸

Measurement



剪刃型号

Blade   type



重量kg

Wt

A

B

C

D

E

RC140

错剪式

12

14

397

247

22

144

-

EG0140

11

RC150

对剪式

20

16

420

200

25

105

90

EG0150

14

RC350

对剪式

35

25

580

240

30

128

122

EG0350

34

RC450

错剪式

45

32

580

246

38.5

138

114

EG0450

48
